0.1831" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520046500
MFR# 9005520046500Series 552
$11.40List $14.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

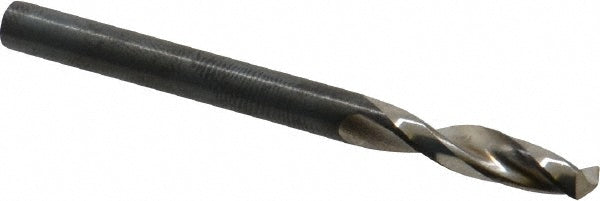

The Guhring 9005520046500 is a 0.1831" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1831
Drill bit size range0.1500 to 0.2000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length0.9450
Flute typeParabolic
Maximum drilling depth0.6700
Number of flutes2
Overall length2.2835
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
