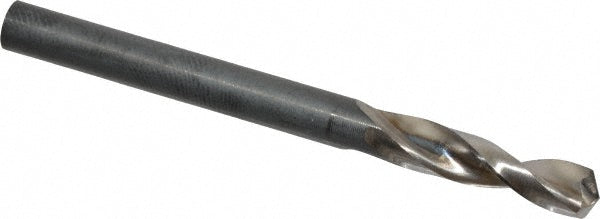

13/64" HSS Stub Drill Bit, 130° point - Guhring 9005520051600

Guhring

13/64" HSS Stub Drill Bit, 130° point - Guhring 9005520051600

MFR# 9005520051600Series 552

$11.40List $14.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2

Description

The Guhring 9005520051600 is a 13/64" HSS Stub drill bit, 130° point. Suited for steel, aluminum & non-ferrous. 1-1/32 flute length, 2-7/16 overall length. Series 552.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in13/64
Drill bit size range0.2000 to 0.2500
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-1/32
Flute typeParabolic
Maximum drilling depth0.7190
Number of flutes2
Overall length in2-7/16
Point typeCone Relief
Primary workpiece materialSteel; Aluminum & Non-Ferrous
Shank diameter0.2031
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeFast
StandardsDIN 1897
Tool materialHSS
Web configurationParallel
Web thinningWeb-Thinned
