#1 HSS Stub Drill Bit, 130° point - Guhring 9005520057900

Guhring

#1 HSS Stub Drill Bit, 130° point - Guhring 9005520057900

MFR# 9005520057900Series 552

$13.88List $17.79 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

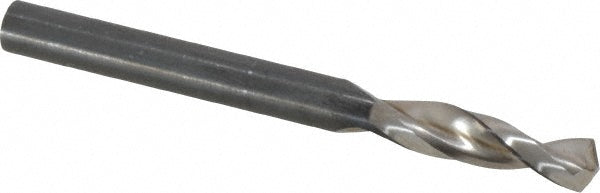

The Guhring 9005520057900 is a #1 HSS Stub drill bit, 130° point. Suited for steel, aluminum & non-ferrous. 1-7/64 flute length, 2-19/32 overall length. Series 552.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.2280
Drill bit size range0.2000 to 0.2500
Drill bit size wire#1
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-7/64
Flute typeParabolic
Maximum drilling depth0.7610
Number of flutes2
Overall length in2-19/32
Point typeCone Relief
Primary workpiece materialSteel; Aluminum & Non-Ferrous
Shank diameter0.2280
Shank length1.4961
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeFast
StandardsDIN 1897
Tool materialHSS
Web configurationParallel
Web thinningWeb-Thinned
