Guhring

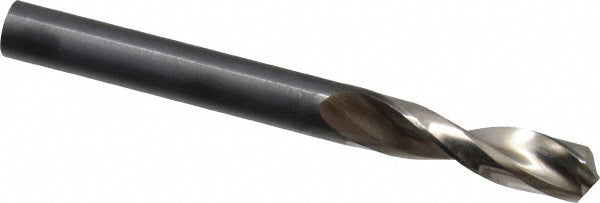

9/32" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520071400
MFR# 9005520071400Series 552
$19.44List $24.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
Description
The Guhring 9005520071400 is a 9/32" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. 1-11/32 flute length, 2-29/32 overall length. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size in9/32
Drill bit size letterK
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-11/32
Flute typeParabolic
Maximum drilling depth0.9170
Number of flutes2
Overall length in2-29/32
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
