Guhring
21/64" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520083300
MFR# 9005520083300Series 552
$24.02List $30.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/64
Flutes2
Description

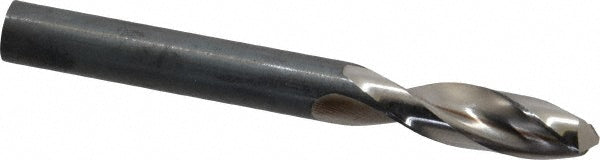

The Guhring 9005520083300 is a 21/64" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. 1-7/16 flute length, 3-1/8 overall length. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size in21/64
Drill bit size range0.3000 to 0.3500
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-7/16
Flute typeParabolic
Maximum drilling depth0.9650
Number of flutes2
Overall length in3-1/8
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
