Guhring
11/32" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520087300
MFR# 9005520087300Series 552
$31.83List $40.11
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
Description

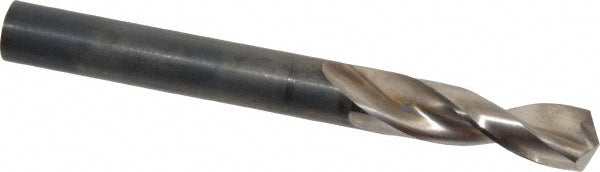

The Guhring 9005520087300 is a 11/32" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. 1-9/16 flute length, 3-5/16 overall length. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size in11/32
Drill bit size range0.3000 to 0.3500
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-9/16
Flute typeParabolic
Maximum drilling depth1.0590
Number of flutes2
Overall length in3-5/16
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
