Guhring

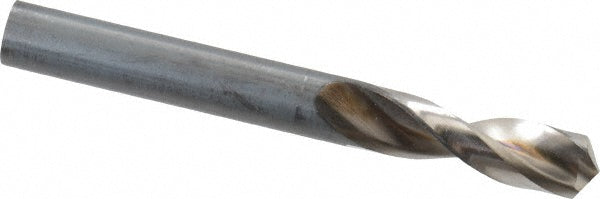

0.3661" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520093000
MFR# 9005520093000Series 552
$25.44List $32.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005520093000 is a 0.3661" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size0.3661
Drill bit size range0.3500 to 0.4000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length1.5748
Flute typeParabolic
Maximum drilling depth1.0260
Number of flutes2
Overall length3.3070
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
