27/64" HSS Stub Drill Bit, 130° point - Guhring 9005520107200

Guhring

27/64" HSS Stub Drill Bit, 130° point - Guhring 9005520107200

MFR# 9005520107200Series 552

$47.86List $61.37 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/64
Flutes2

Description

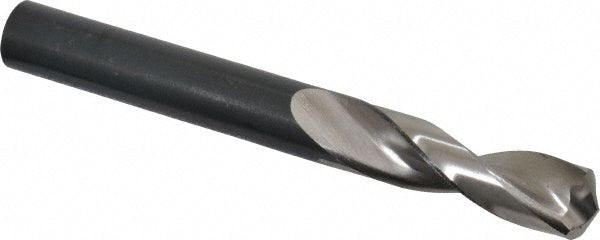

The Guhring 9005520107200 is a 27/64" HSS Stub drill bit, 130° point. Suited for steel, aluminum & non-ferrous. 1-27/32 flute length, 3-3/4 overall length. Series 552.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size in27/64
Drill bit size range0.4000 to 0.4500
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-27/32
Flute typeParabolic
Maximum drilling depth1.2170
Number of flutes2
Overall length in3-3/4
Point typeCone Relief
Primary workpiece materialSteel; Aluminum & Non-Ferrous
Shank diameter0.4219
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeFast
StandardsDIN 1897
Tool materialHSS
Web configurationParallel
Web thinningWeb-Thinned
