Guhring

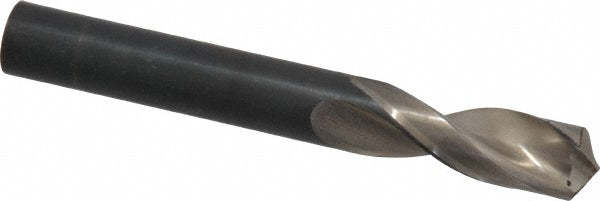

29/64" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520115100
MFR# 9005520115100Series 552
$50.23List $64.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size29/64
Flutes2
Description
The Guhring 9005520115100 is a 29/64" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. 1-27/32 flute length, 3-3/4 overall length. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size in29/64
Drill bit size range0.4500 to 0.5000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-27/32
Flute typeParabolic
Maximum drilling depth1.1710
Number of flutes2
Overall length in3-3/4
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
