Guhring

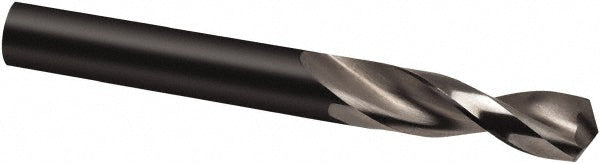

0.5709" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520145000
MFR# 9005520145000Series 552
$71.66List $90.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005520145000 is a 0.5709" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit size0.5709
Drill bit size range0.5000 to 0.6000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length (mm)56.00
Flute typeParabolic
Material gradeM2
Maximum drilling depth1.3480
Number of flutes2
Overall length (mm)111.00
Point typeCone Relief
Primary workpiece materialAluminum
Shank diameter (mm)14.50
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh Speed Steel
Web thinningWeb-Thinned
