Guhring

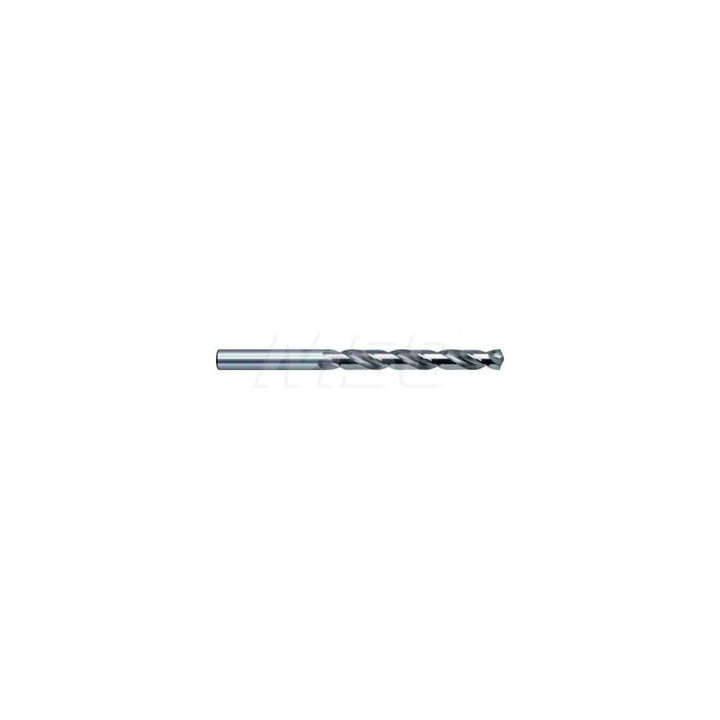

1/16" Cobalt Drill Bit, 130° point - Guhring 9006050015900
MFR# 9006050015900Series 605
$4.28List $5.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
Description
The Guhring 9006050015900 is a 1/16" Cobalt drill bit, 130° point. Suited for titanium alloy. Series 605.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.014 to 0.000 mm
Drill bit materialCobalt
Drill bit size in1/16
Drill bit size range0.0500 - 0.1000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)20.00
Flute typeSpiral
Maximum drilling depth0.6940
Number of flutes2
Overall length (mm)43.00
Point typeSplit
Primary workpiece materialTitanium Alloy
Shank diameter in1/16
Shank length (mm)23.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool applicationSelf-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
