Guhring

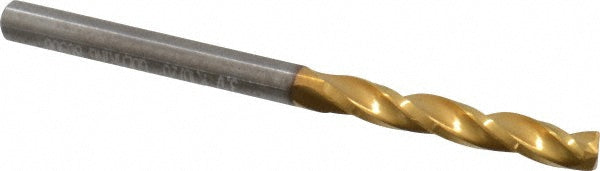

1/8" Solid Carbide Drill Bit, TiN, 150° point - Guhring 9006090031700
MFR# 9006090031700Series 609
$80.16List $101.02
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes3
CoatingTiN
Description
The Guhring 9006090031700 is a 1/8" Solid Carbide drill bit with a TiN finish, 150° point. 15/16 flute length, 1-59/64 overall length. Series 609.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.012 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in15/16
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth0.7580
Number of flutes3
Overall length in1-59/64
Point typeStandard
Shank diameter in1/8
Shank length (mm)25.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
