Guhring

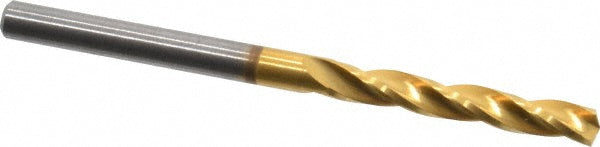

0.1260" Solid Carbide Drill Bit, TiN, 150° point - Guhring 9006090032000
MFR# 9006090032000Series 609
$75.55List $96.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiN
Description
The Guhring 9006090032000 is a 0.1260" Solid Carbide drill bit with a TiN finish, 150° point. Series 609.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.012 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.1260
Drill bit size range0.1000 - 0.1500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length0.9450
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth0.7600
Number of flutes3
Overall length1.9290
Point typeStandard
Shank diameter0.1260
Shank length (mm)25.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
