Guhring

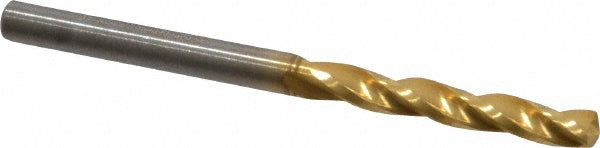

9/64" Solid Carbide Drill Bit, TiN, 150° point - Guhring 9006090035700
MFR# 9006090035700Series 609
$78.76List $101.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes3
CoatingTiN
Description
The Guhring 9006090035700 is a 9/64" Solid Carbide drill bit with a TiN finish, 150° point. 1-1/16 flute length, 2-3/64 overall length. Series 609.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.012 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill bit size wire#28
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-1/16
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth0.8520
Number of flutes3
Overall length in2-3/64
Point typeStandard
Shank diameter in9/64
Shank length (mm)25.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
