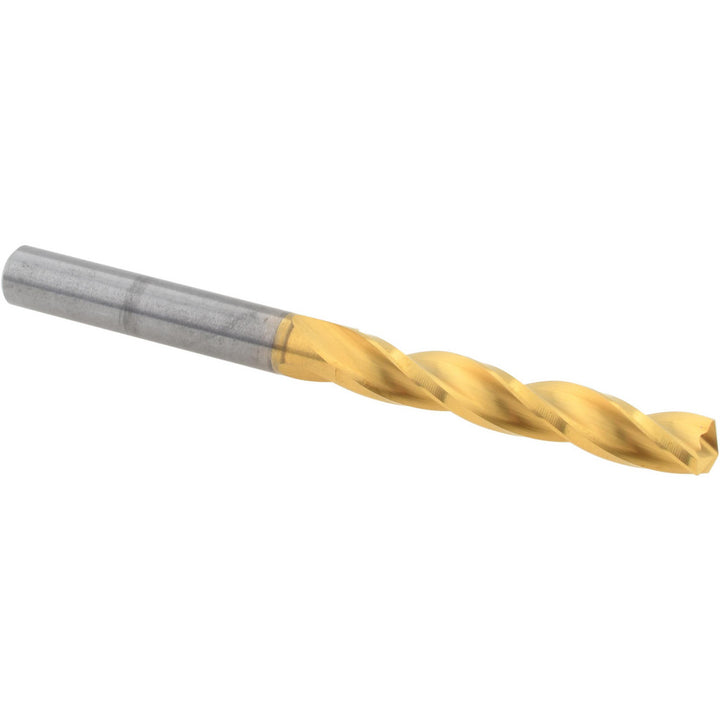

0.2165" Solid Carbide Drill Bit, TiN, 150° point - Guhring 9006090055000
MFR# 9006090055000Series 609
$92.12List $118.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiN
Description
The Guhring 9006090055000 is a 0.2165" Solid Carbide drill bit with a TiN finish, 150° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 609.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.012 to 0.000 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2165
Drill bit size range0.2000 - 0.2500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length1.5350
Flute typeRegular Spiral
Material gradeSubmicron
Maximum drilling depth1.2100
Number of flutes3
Overall length2.5980
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2165
Shank length (mm)27
Shank typeStraight
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
