Guhring
0.2205" Solid Carbide Drill Bit, TiN, 150° point - Guhring 9006090056000
MFR# 9006090056000
$106.17List $136.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiN
Description

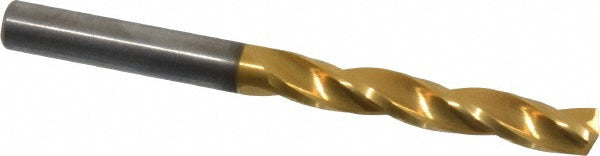

The Guhring 9006090056000 is a 0.2205" Solid Carbide drill bit with a TiN finish, 150° point.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.012 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.2205
Drill bit size range0.2000 - 0.2500
Drill point angle degrees150
Flute length1.5350
Flute typeSpiral
Material gradeSubmicron
Number of flutes3
Overall length2.5980
Point typeStandard
Shank diameter0.2205
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
