Guhring

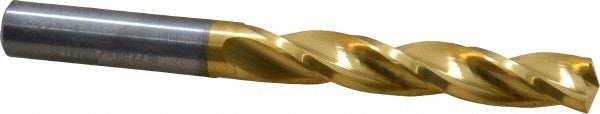

9/32" Solid Carbide Drill Bit, TiN, 150° point - Guhring 9006090071400
MFR# 9006090071400Series 609
$153.53List $196.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes3
CoatingTiN
Description
The Guhring 9006090071400 is a 9/32" Solid Carbide drill bit with a TiN finish, 150° point. 1-49/64 flute length, 2-29/32 overall length. Series 609.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.015 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size in9/32
Drill bit size letterK
Drill bit size range0.2500 - 0.3000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-49/64
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth1.3500
Number of flutes3
Overall length in2-29/32
Point typeStandard
Shank diameter in9/32
Shank length (mm)29.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
