Guhring

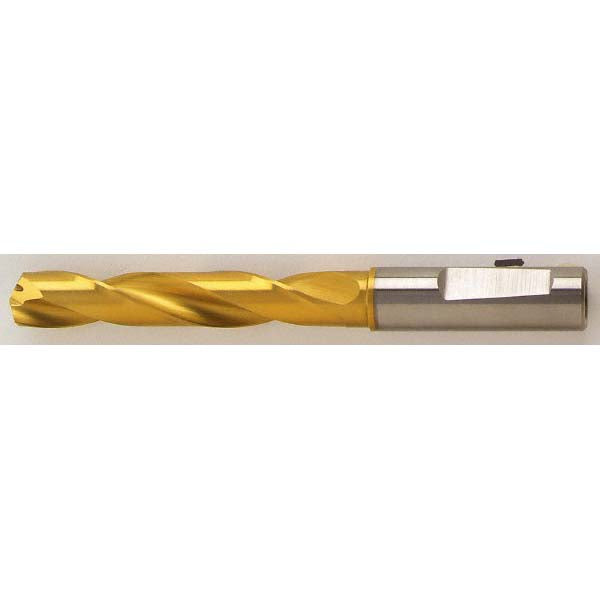

19/64" Solid Carbide Drill Bit, TiN, 150° point - Guhring 9006090075400
MFR# 9006090075400Series 609
$169.51List $217.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
Flutes3
CoatingTiN
Description
The Guhring 9006090075400 is a 19/64" Solid Carbide drill bit with a TiN finish, 150° point. 1-57/64 flute length, 3-7/64 overall length. Series 609.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.015 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size in19/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-57/64
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth1.4440
Number of flutes3
Overall length in3-7/64
Point typeStandard
Shank diameter in19/64
Shank length (mm)31.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
