Guhring
5/16" Solid Carbide Drill Bit, TiN, 150° point - Guhring 9006090079400
MFR# 9006090079400Series 609
$160.04List $205.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes3
CoatingTiN
Description

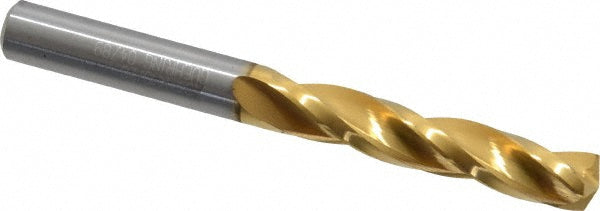

The Guhring 9006090079400 is a 5/16" Solid Carbide drill bit with a TiN finish, 150° point. 1-57/64 flute length, 3-7/64 overall length. Series 609.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.015 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialSolid Carbide
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in1-57/64
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth1.4210
Number of flutes3
Overall length in3-7/64
Point typeStandard
Shank diameter in5/16
Shank length (mm)31.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool applicationSelf-Centering
Web configurationTapered
Web thinningWeb-Thinned
