Guhring

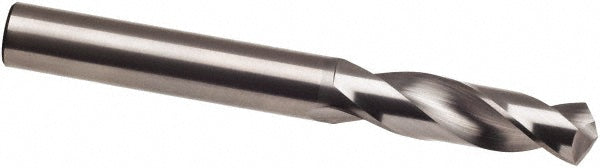

0.2992" Cobalt Drill Bit, Straw, 135° point - Guhring 9006100076000
MFR# 9006100076000Series 610
$12.92List $16.56
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Guhring 9006100076000 is a 0.2992" Cobalt drill bit with a Straw finish, 135° point. Series 610.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit size0.2992
Drill bit size range0.2500 to 0.3000
Drill point angle135
Flute by diameter ratio3xD
Flute length (mm)37.00
Flute typeRegular Spiral
Material gradeM35
Number of flutes2
Overall length3.1102
Point typeCone Relief
Shank diameter0.2992
Shank typeStraight
Specification designationDIN
Spiral typeRegular
Tool materialCobalt
Web thinningWeb-Thinned
