Guhring

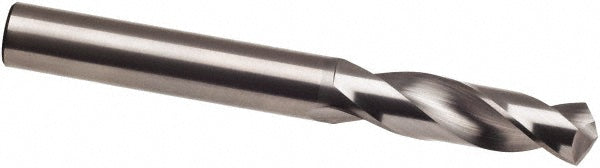

0.3661" Cobalt Stub Drill Bit, Straw, 135° point - Guhring 9006100093000
MFR# 9006100093000Series 610
$20.71List $26.56
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Guhring 9006100093000 is a 0.3661" Cobalt Stub drill bit with a Straw finish, 135° point. Suited for stainless steel, high-temp alloy. Series 610.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit size0.3661
Drill bit size range0.3500 to 0.4000
Drill length typeStub
Drill point angle135
Flute by diameter ratio3xD
Flute length (mm)40.00
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth1.0260
Number of flutes2
Overall length3.3071
Point typeCone Relief
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.3661
Shank length1.7323
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web thinningWeb-Thinned
