Guhring

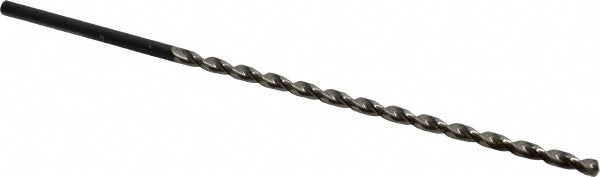

#12 Cobalt Drill Bit, 130° point - Guhring 9006180048000
MFR# 9006180048000Series 618
$70.83List $89.26
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9006180048000 is a #12 Cobalt drill bit, 130° point. Suited for aluminum, titanium alloy. Series 618.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1890
Drill bit size wire#12
Drill point angle130
Flute by diameter ratio15xD
Flute length5.3150
Flute typeParabolic
Maximum drilling depth5.0310
Number of flutes2
Overall length7.6770
Point typeStandard
Primary workpiece materialAluminum; Titanium Alloy
Secondary workpiece materialSteel
Shank diameter0.1890
Shank length (mm)60.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1869
StandardsCalifornia PROP 65; DIN 1869
Tool applicationDeep Hole Drilling
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
