Guhring

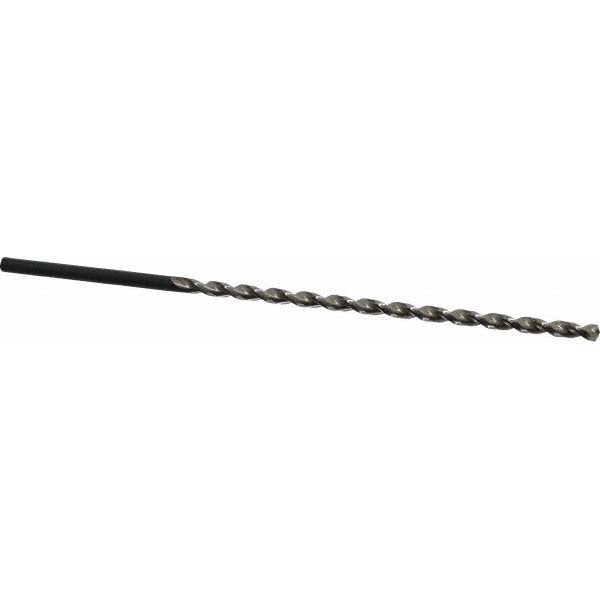

0.2031" Cobalt Drill Bit, 130° point - Guhring 9006180051600
MFR# 9006180051600Series 618
$63.03List $79.44
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9006180051600 is a 0.2031" Cobalt drill bit, 130° point. Suited for aluminum, titanium alloy. Series 618.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.2031
Drill point angle130
Flute by diameter ratio15xD
Flute length5.3150
Flute typeParabolic
Maximum drilling depth5.0100
Number of flutes2
Overall length7.6770
Point typeStandard
Primary workpiece materialAluminum; Titanium Alloy
Secondary workpiece materialSteel
Shank diameter in13/64
Shank length (mm)60.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1869
StandardsCalifornia PROP 65; DIN 1869
Tool applicationDeep Hole Drilling
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
