Guhring

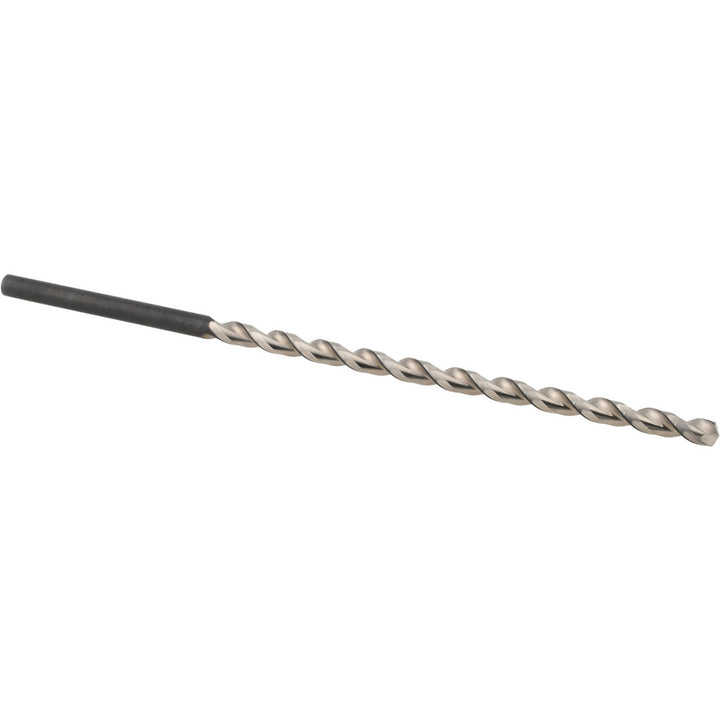

0.2756" Cobalt Drill Bit, Nitride, 130° point - Guhring 9006180070000
MFR# 9006180070000Series 618
$72.81List $93.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingNitride
Description
The Guhring 9006180070000 is a 0.2756" Cobalt drill bit with a Nitride finish, 130° point. Suited for aluminum, titanium alloy. Series 618.
Specifications
Coating finishNitride
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size0.2756
Drill point angle130
Flute by diameter ratio15xD
Flute length6.1020
Flute typeParabolic
Maximum drilling depth5.6890
Number of flutes2
Overall length8.8580
Point typeStandard
Primary workpiece materialAluminum; Titanium Alloy
Secondary workpiece materialSteel
Shank diameter0.2756
Shank length (mm)70.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1869
StandardsCalifornia PROP 65; DIN 1869
Tool applicationDeep Hole Drilling
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
