Guhring

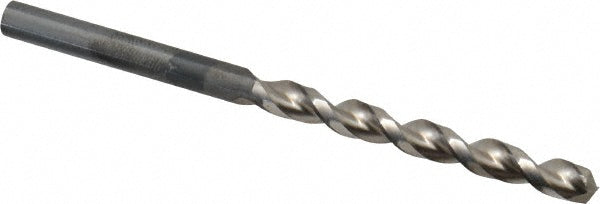

#13 Cobalt Drill Bit, 130° point - Guhring 9006220047000
MFR# 9006220047000Series 622
$15.98List $20.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9006220047000 is a #13 Cobalt drill bit, 130° point. Suited for aluminum. 1-27/32 flute length, 3-5/32 overall length. Series 622.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.1850
Drill bit size range0.1500 - 0.2000
Drill bit size wire#13
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in1-27/32
Flute typeParabolic
Maximum drilling depth1.5730
Number of flutes2
Overall length in3-5/32
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.1850
Shank length (mm)33.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
