Guhring

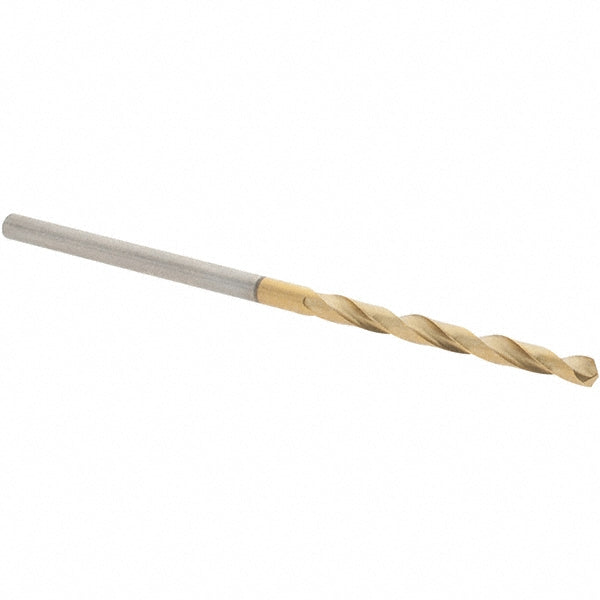

0.0670" High Speed Steel Drill Bit, Titanium Nitride, 118° point - Guhring 9006510017000
MFR# 9006510017000Series 651
$4.67List $5.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9006510017000 is a 0.0670" High Speed Steel drill bit with a Titanium Nitride finish, 118° point. Suited for cast iron, steel. Series 651.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.0670
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length0.7874
Flute typeSpiral
Maximum drilling depth0.7874
Number of flutes2
Overall length1.6929
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.0669
Shank length0.9055
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
