Guhring
#48 High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510019300
MFR# 9006510019300
$6.31List $8.08
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

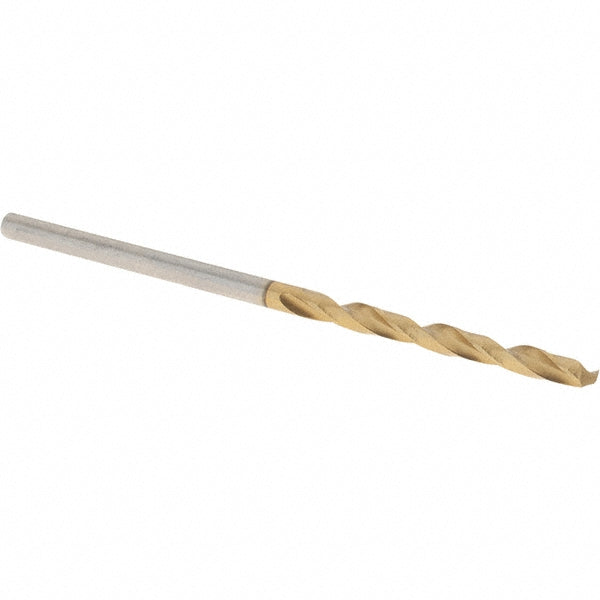

The Guhring 9006510019300 is a #48 High Speed Steel drill bit with a TiN finish, 118° point.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0760
Drill bit size range0.0500 - 0.1000
Drill bit size wire#48
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length0.9449
Flute typeSpiral
Material gradeM2
Maximum drilling depth0.9449
Number of flutes2
Overall length1.9291
Point typeStandard
Shank diameter0.0760
Shank length0.9843
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
