Guhring

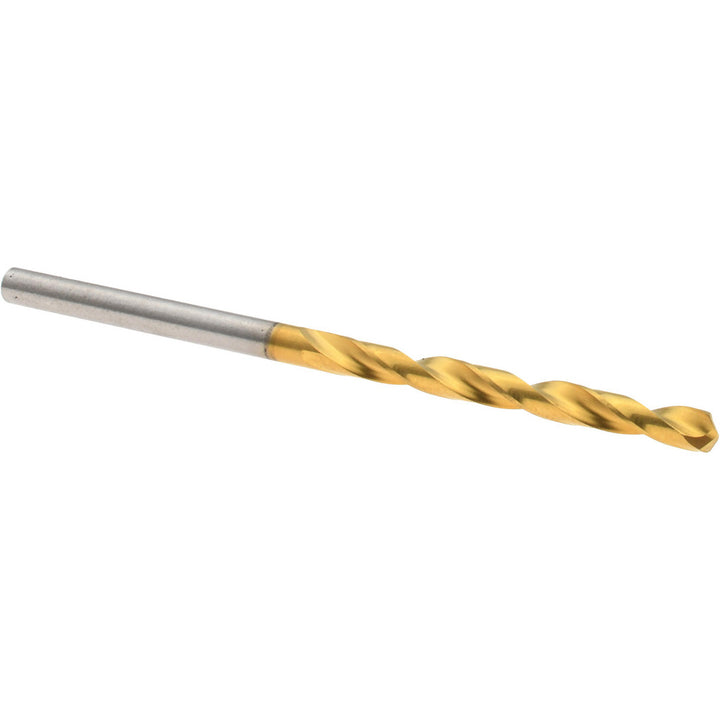

1/8" HSS Drill Bit, TiN, 118° point - Guhring 9006510031500
MFR# 9006510031500Series 651
$5.22List $6.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiN
Description
The Guhring 9006510031500 is a 1/8" HSS drill bit with a TiN finish, 118° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.4173
Maximum drilling depth1.2310
Number of flutes2
Overall length2.5591
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)3.15
Shank length (mm)29
Shank typeStraight
StandardsDIN 338
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
