Guhring

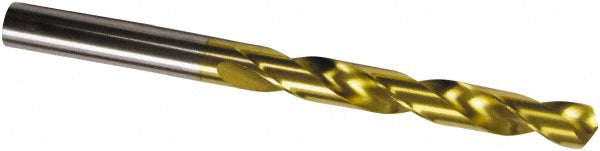

#27 HSS Drill Bit, TiN, 118° point - Guhring 9006510036600
MFR# 9006510036600Series 651
$6.81List $8.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006510036600 is a #27 HSS drill bit with a TiN finish, 118° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size0.1440
Drill bit size range0.1000 - 0.1500
Drill bit size wire#27
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.5354
Flute typeRegular Spiral
Maximum drilling depth1.3190
Number of flutes2
Overall length2.7559
Point typeCone Relief
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.1441
Shank length (mm)31
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
