Guhring

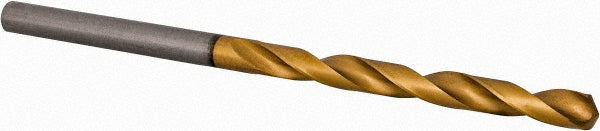

#25 High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510038000
MFR# 9006510038000Series 651
$6.93List $8.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006510038000 is a #25 High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1495
Drill bit size range0.1000 - 0.1500
Drill bit size wire#25
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.6929
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.6929
Number of flutes2
Overall length2.9528
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.1496
Shank length1.2598
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
