Guhring

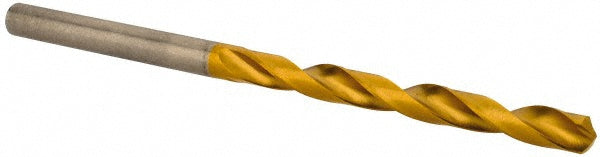

5/32" High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510039700
MFR# 9006510039700Series 651
$6.93List $8.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
CoatingTiN
Description
The Guhring 9006510039700 is a 5/32" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)43.00
Flute typeSpiral
Maximum drilling depth1.4590
Number of flutes2
Overall length (mm)75.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in5/32
Shank length (mm)32.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
