Guhring

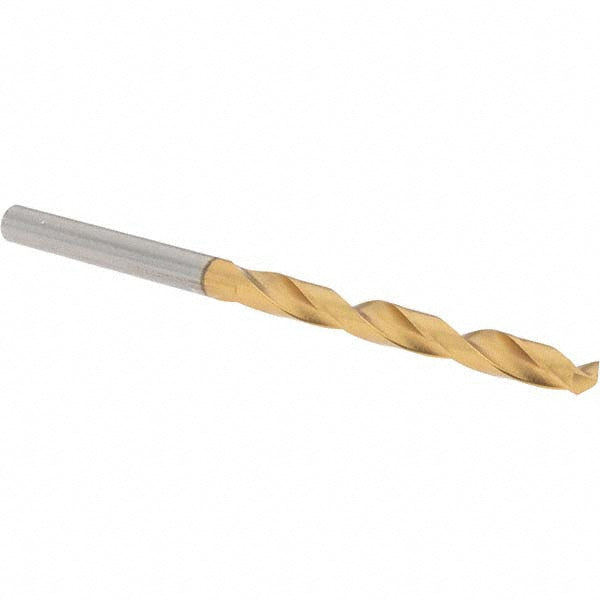

#16 High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510045000
MFR# 9006510045000Series 651
$7.06List $9.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006510045000 is a #16 High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1770
Drill bit size range0.1500 - 0.2000
Drill bit size wire#16
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.8504
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.8504
Number of flutes2
Overall length3.1496
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.1772
Shank length1.2992
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
