Guhring

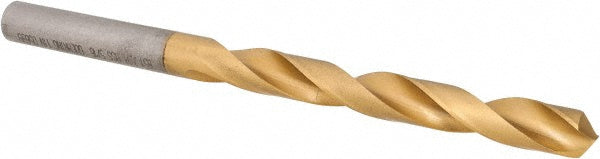

5/16" High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510079400
MFR# 9006510079400Series 651
$18.32List $23.08
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
CoatingTiN
Description
The Guhring 9006510079400 is a 5/16" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length2.9528
Flute typeSpiral
Material gradeM2
Maximum drilling depth2.9528
Number of flutes2
Overall length4.6063
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in5/16
Shank length1.6535
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
