Guhring

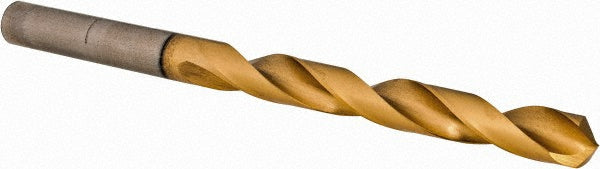

21/64" High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510083300
MFR# 9006510083300Series 651
$19.41List $24.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/64
Flutes2
CoatingTiN
Description
The Guhring 9006510083300 is a 21/64" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length2.9528
Flute typeSpiral
Material gradeM2
Maximum drilling depth2.9528
Number of flutes2
Overall length4.6063
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in21/64
Shank length1.6535
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
