Guhring

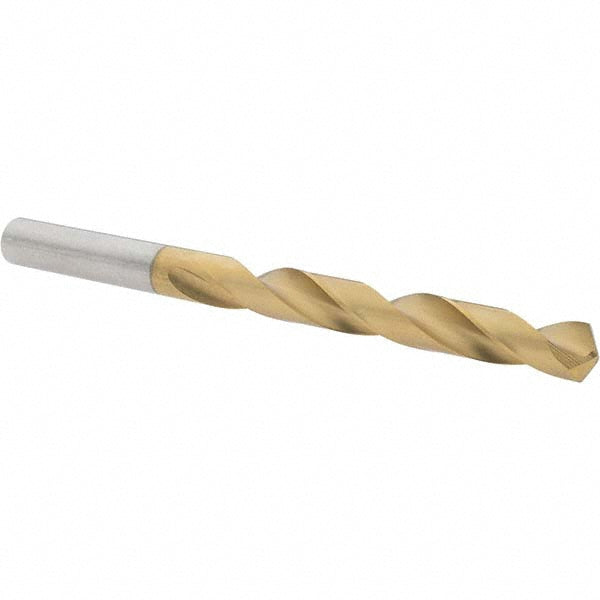

27/64" High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510107200
MFR# 9006510107200Series 651
$45.84List $57.77
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes2
CoatingTiN
Description
The Guhring 9006510107200 is a 27/64" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length3.7008
Flute typeSpiral
Material gradeM2
Maximum drilling depth3.7008
Number of flutes2
Overall length5.5906
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in27/64
Shank length1.8898
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
