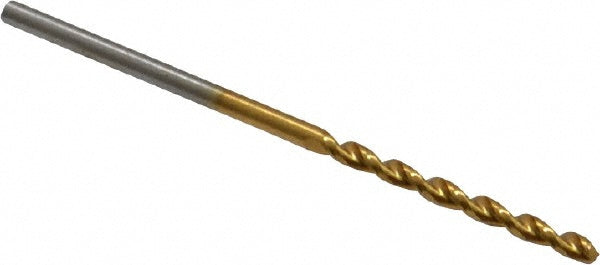

0.0650" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520016500
MFR# 9006520016500Series 652
$12.51List $16.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006520016500 is a 0.0650" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 25/32 flute length, 1-11/16 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.014 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.0650
Drill bit size range0.0500 - 0.1000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in25/32
Flute typeParabolic
Maximum drilling depth0.6900
Number of flutes2
Overall length in1-11/16
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.0650
Shank length (mm)23.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
