Guhring

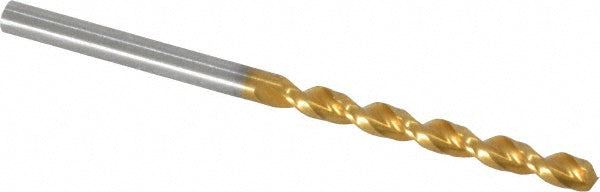

0.1457" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520037000
MFR# 9006520037000Series 652
$16.35List $20.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006520037000 is a 0.1457" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 1-17/32 flute length, 2-3/4 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.1457
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in1-17/32
Flute typeParabolic
Maximum drilling depth1.3200
Number of flutes2
Overall length in2-3/4
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.1457
Shank length (mm)31.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
