Guhring

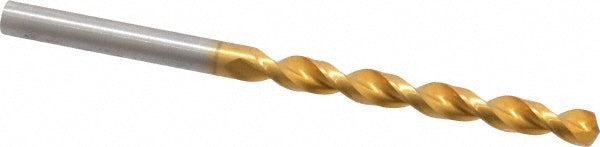

#8 High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520050600
MFR# 9006520050600Series 652
$23.16List $29.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006520050600 is a #8 High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 2-1/16 flute length, 3-3/8 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.1992
Drill bit size range0.1500 - 0.2000
Drill bit size wire#8
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in2-1/16
Flute typeParabolic
Maximum drilling depth1.7480
Number of flutes2
Overall length in3-3/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.1992
Shank length (mm)34.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
