13/64" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520051600

Guhring

13/64" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520051600

MFR# 9006520051600Series 652

$23.16List $29.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingTiN

Description

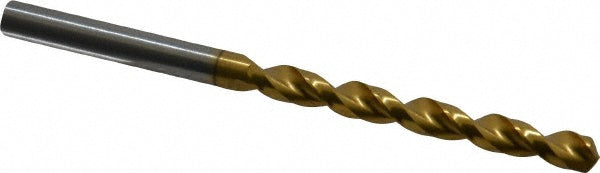

The Guhring 9006520051600 is a 13/64" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 3-3/8 overall length. Series 652.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size in13/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)52.00
Flute typeParabolic
Maximum drilling depth1.7430
Number of flutes2
Overall length in3-3/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in13/64
Shank length (mm)34.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
