Guhring

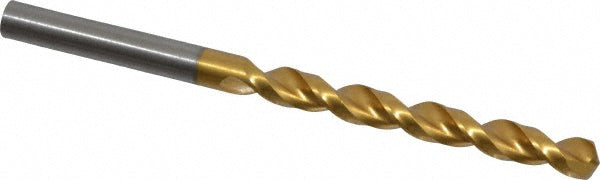

15/64" HSS Drill Bit, TiN, 130° point - Guhring 9006520059500
MFR# 9006520059500Series 652
$27.50List $35.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/64
Flutes2
CoatingTiN
Description
The Guhring 9006520059500 is a 15/64" HSS drill bit with a TiN finish, 130° point. Suited for steel, cast iron, aluminum & non-ferrous. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in15/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length2.2441
Flute typeParabolic
Maximum drilling depth1.8930
Number of flutes2
Overall length3.6614
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter in15/64
Shank length (mm)36
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
