Guhring

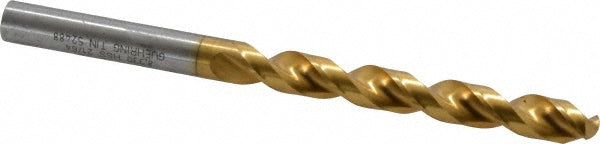

21/64" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520083300
MFR# 9006520083300Series 652
$57.29List $73.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/64
Flutes2
CoatingTiN
Description
The Guhring 9006520083300 is a 21/64" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 4-19/32 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)75.00
Flute typeParabolic
Maximum drilling depth2.4610
Number of flutes2
Overall length in4-19/32
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in21/64
Shank length (mm)42.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
