11/32" HSS Drill Bit, TiN, 130° point - Guhring 9006520087300

Guhring

11/32" HSS Drill Bit, TiN, 130° point - Guhring 9006520087300

MFR# 9006520087300Series 652

$61.75List $79.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2
CoatingTiN

Description

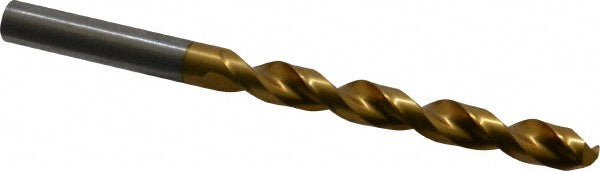

The Guhring 9006520087300 is a 11/32" HSS drill bit with a TiN finish, 130° point. Suited for steel, cast iron, aluminum & non-ferrous. 3-3/16 flute length, 4-29/32 overall length. Series 652.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-3/16
Flute typeParabolic
Maximum drilling depth2.6740
Number of flutes2
Overall length in4-29/32
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter in11/32
Shank length (mm)44
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
