29/64" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520115100

Guhring

29/64" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520115100

MFR# 9006520115100Series 652

$82.68List $106.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size29/64
Flutes2
CoatingTiN

Description

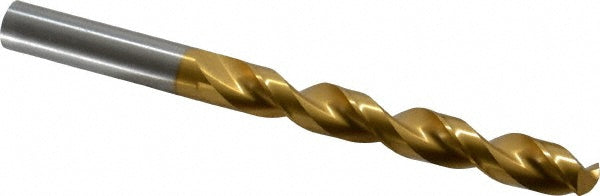

The Guhring 9006520115100 is a 29/64" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 5-19/32 overall length. Series 652.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size in29/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)94.00
Flute typeParabolic
Maximum drilling depth3.0210
Number of flutes2
Overall length in5-19/32
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in29/64
Shank length (mm)48.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
