Guhring

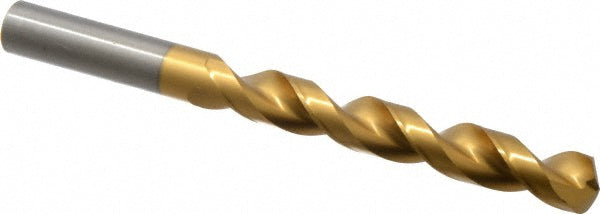

0.5906" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520150000
MFR# 9006520150000Series 652
$148.78List $187.49
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006520150000 is a 0.5906" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 4-31/64 flute length, 6-21/32 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.5906
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in4-31/64
Flute typeParabolic
Maximum drilling depth3.6020
Number of flutes2
Overall length in6-21/32
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.5906
Shank length (mm)55.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
