Guhring

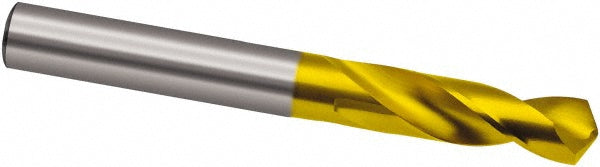

0.0925" High Speed Steel Stub Drill Bit, Coated, 118° point - Guhring 9006530023500
MFR# 9006530023500Series 653
$12.30List $15.50
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9006530023500 is a 0.0925" High Speed Steel Stub drill bit with a Coated finish, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit size0.0925
Drill bit size range0.0000 to 0.1000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)13.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth0.3730
Number of flutes2
Overall length (mm)40.00
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)2.35
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh Speed Steel
Web thinningWeb-Thinned
