Guhring
#37 High-Speed Steel Stub Drill Bit, TiN, 118° point - Guhring 9006530026400
MFR# 9006530026400Series 653
$12.36List $15.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

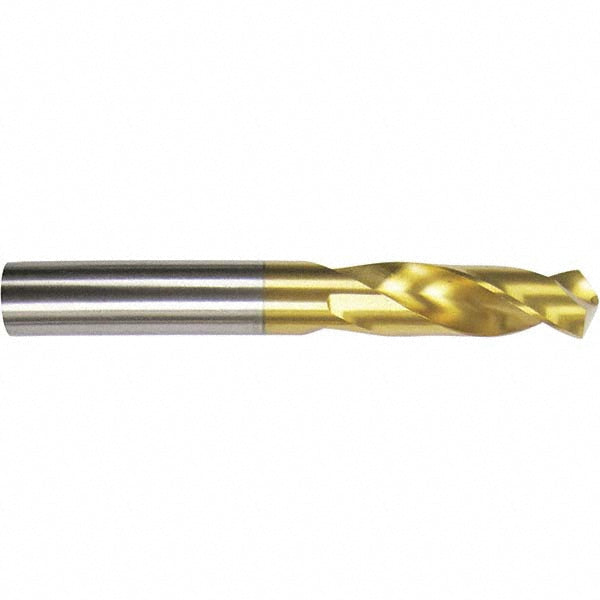

The Guhring 9006530026400 is a #37 High-Speed Steel Stub drill bit with a TiN finish, 118° point. Series 653.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit gradeGeneral Purpose
Drill bit size0.1040
Drill bit size range0.1000 to 0.1500
Drill bit size wire#37
Drill length typeStub
Drill point angle118
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length0.5512
Flute typeSpiral
Material gradeM2
Maximum drilling depth0.5512
Number of flutes2
Overall length1.6929
Point typeStandard
Shank diameter0.1039
Shank length1.1417
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
