Guhring

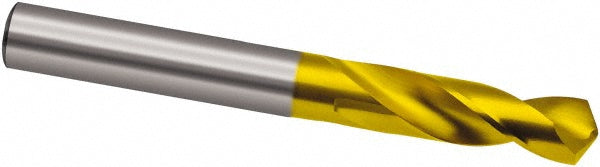

0.1476" High-Speed Steel Stub Drill Bit, 118° point - Guhring 9006530037500
MFR# 9006530037500Series 653
$12.14List $15.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9006530037500 is a 0.1476" High-Speed Steel Stub drill bit, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit size0.1476
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)20.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth0.5660
Number of flutes2
Overall length2.0472in
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter0.1476
Shank length1.2598in
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh-Speed Steel
Web thinningWeb-Thinned
