Guhring

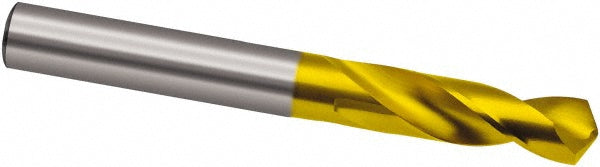

0.1969" High Speed Steel Stub Drill Bit, Coated, 118° point - Guhring 9006530050000
MFR# 9006530050000Series 653
$9.15List $11.54
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9006530050000 is a 0.1969" High Speed Steel Stub drill bit with a Coated finish, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit size0.1969
Drill bit size range0.1500 to 0.2000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)26.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth0.7280
Number of flutes2
Overall length (mm)62.00
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)5.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh Speed Steel
Web thinningWeb-Thinned
