Guhring

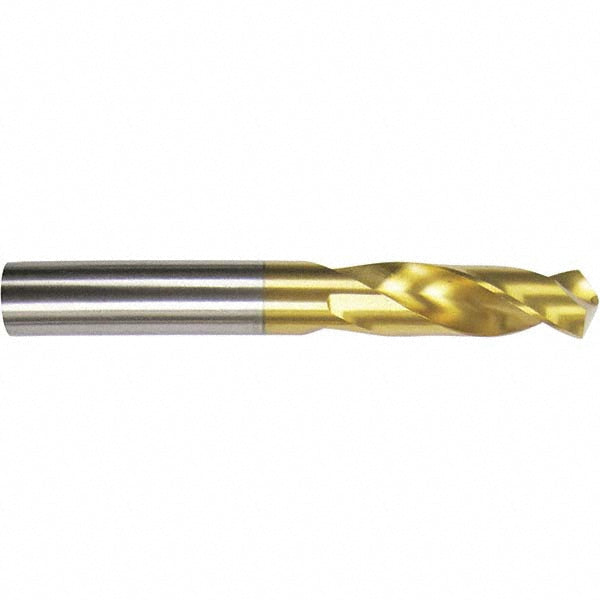

13/64" High Speed Steel Stub Drill Bit, Coated, 118° point - Guhring 9006530051600
MFR# 9006530051600Series 653
$12.05List $15.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/64
Flutes2
CoatingCoated
Description
The Guhring 9006530051600 is a 13/64" High Speed Steel Stub drill bit with a Coated finish, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeGeneral Purpose
Drill bit size in13/64
Drill bit size range0.2000 to 0.2500
Drill length typeStub
Drill point angle118
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length1.0236
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.0236
Number of flutes2
Overall length2.4409
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.2031
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
