Guhring

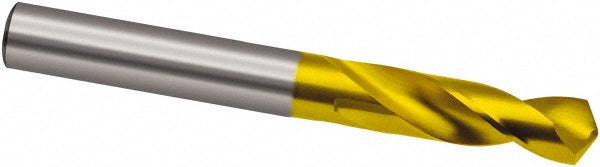

0.6890" High Speed Steel Stub Drill Bit, Coated, 118° point - Guhring 9006530175000
MFR# 9006530175000Series 653
$90.03List $115.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9006530175000 is a 0.6890" High Speed Steel Stub drill bit with a Coated finish, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit size0.6890
Drill bit size range0.6000+
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)62.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.4070
Number of flutes2
Overall length4.8425
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter0.6890
Shank length2.4016
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh Speed Steel
Web thinningWeb-Thinned
